  • PROMAX数字场强 频谱分析及码流录制播放分析仪 RANGER Neo 4

PROMAX数字场强 频谱分析及码流录制播放分析仪 RANGER Neo 4

产品分类:5140 Sort:PROMAX(宝马)
数字广播电视, 有线电视, 卫星, 网络电视,光纤及无线网络,加密解密综合测试仪,码流录制播放。
全国咨询服务热线+86 755 86091080
  • 产品介绍
  • 产品参数

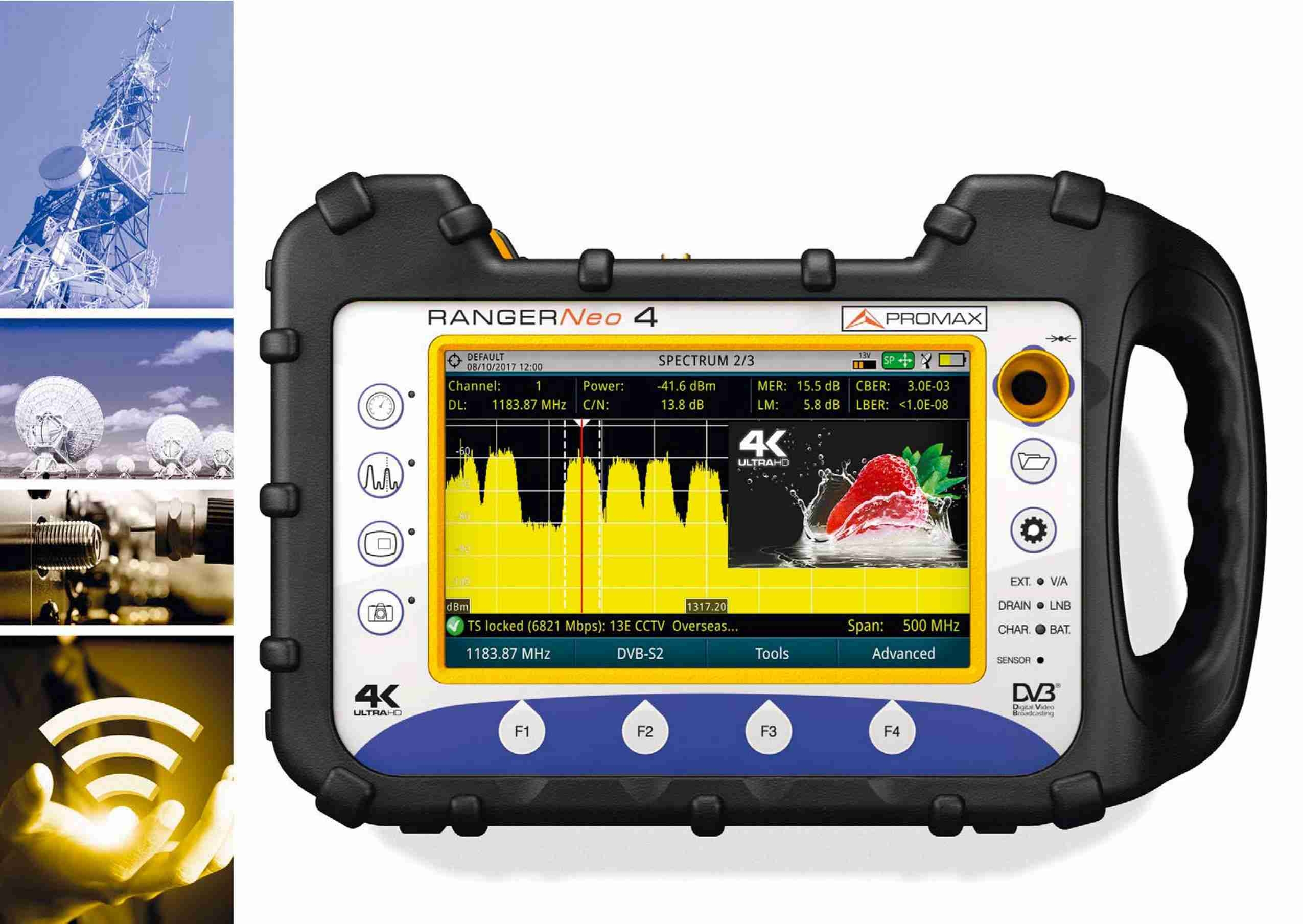

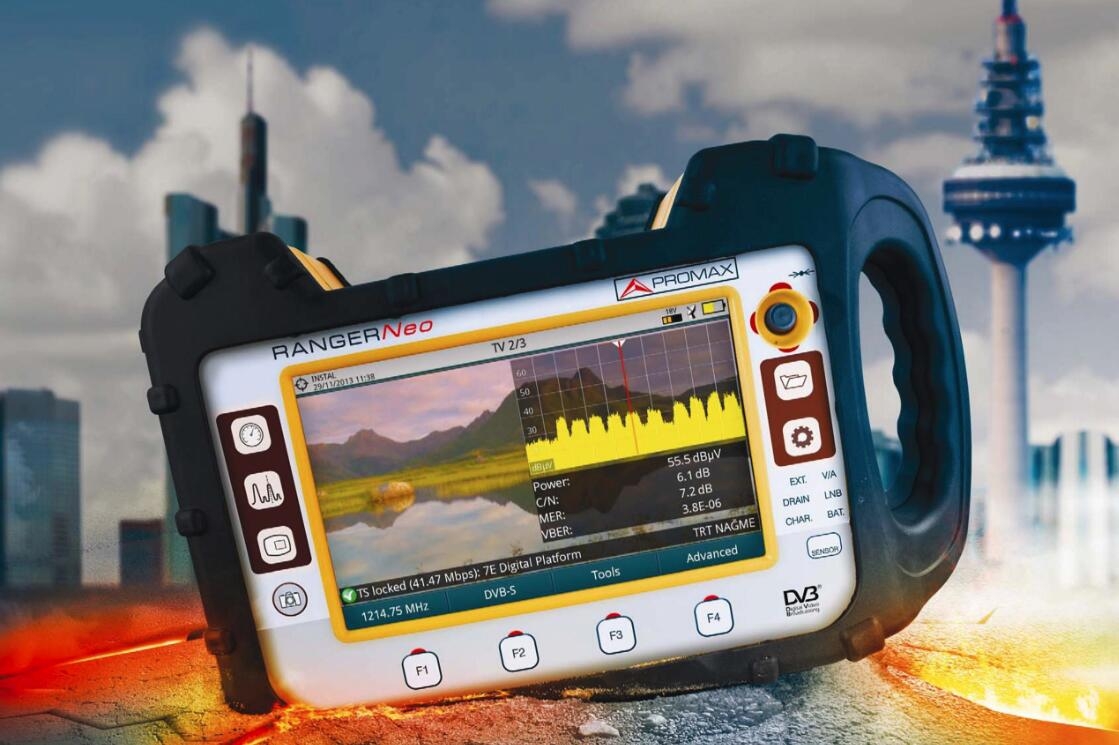

PROMAX数字场强 频谱分析及码流录制播放分析仪 RANGER Neo 4


PROMAX场强仪支持数字电视,有线电视,卫星信号,网络电视,光纤及无线网络等。




数字电视场强仪

WIFI分析仪


场强仪


数字电视分析仪

光纤











数字电视综合测试仪


数字电视信号分析仪






PROMAX数字电视信号分析仪RANGERN Neo系列技术参数:


SPECIFICATIONS

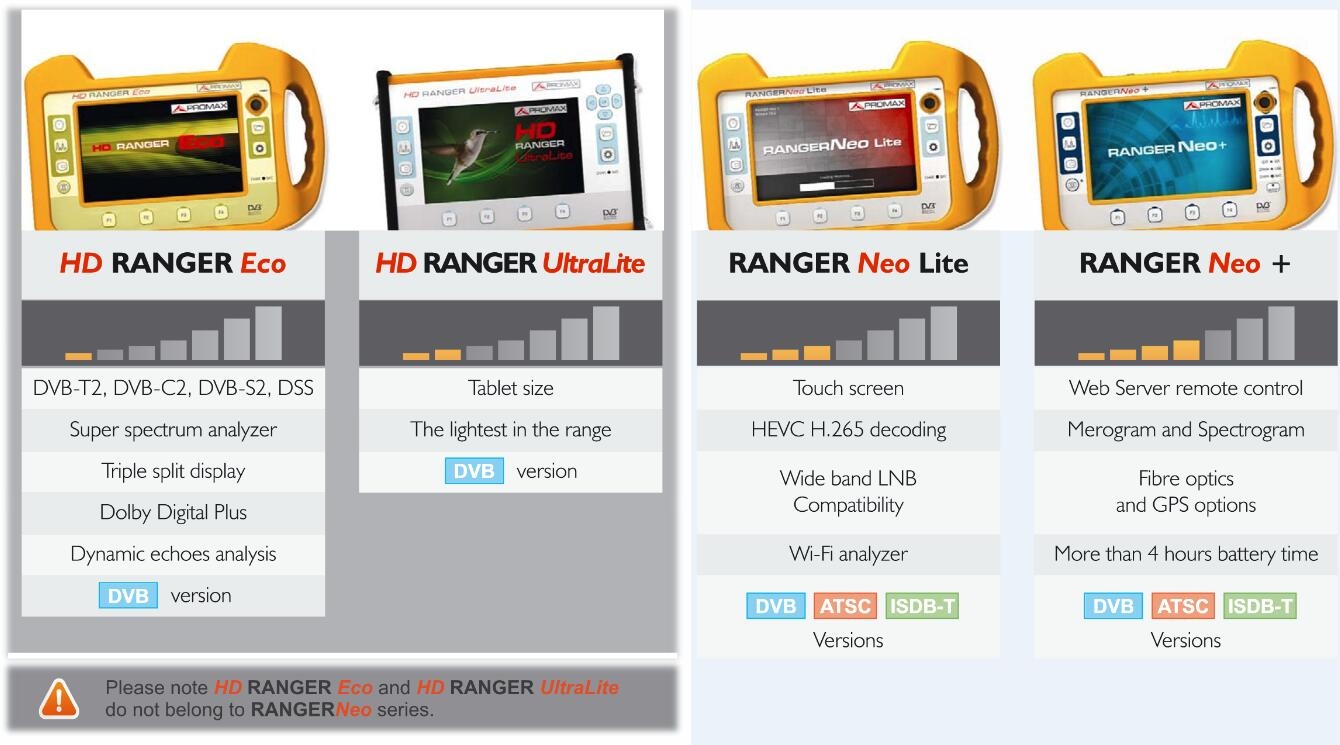

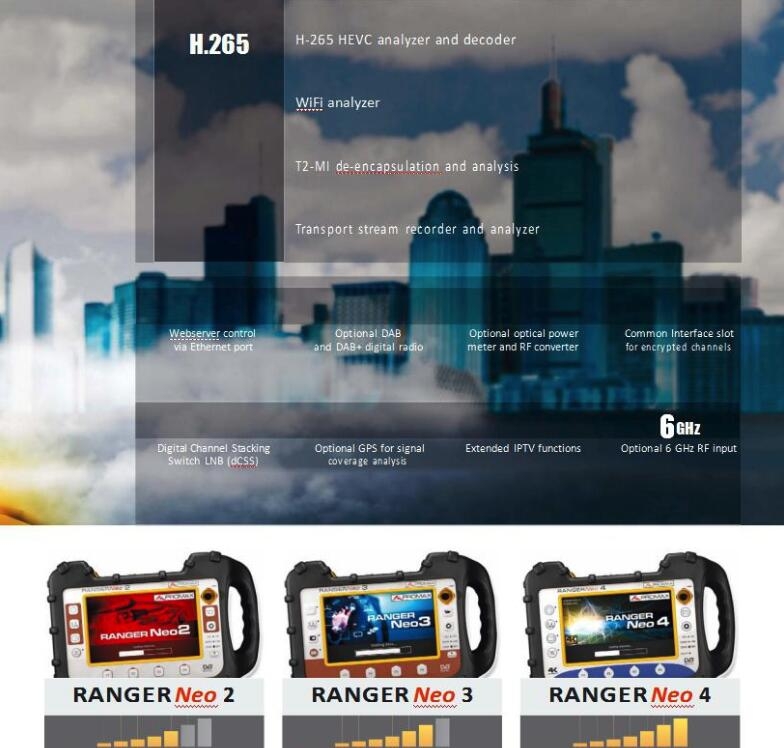

RANGERNeo Lite

RANGERNeo +

RANGERNeo 2

RANGERNeo 3

RANGERNeo 4

DIGITAL BROADCAST STANDARDS

DVB-T/T2, DVB-T2 lite

DVB-C/C2

DVB-S/S2

DVB-S2 Multistream

DSS, ACM / VCM / CCM

... Also includes:



... Also includes:

... Also includes:

DAB, DAB+ (optional)

MPEG-TS

DVB-T2-MI

DAB, DAB+

AUDIO CODECS

MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus

VIDEO CODECS

MPEG-2, MPEG-4 / H.264, HEVC / H.265

INPUTS AND OUTPUTS

-Universal RF input 75 Ω

-HDMI output

-IP interface for remote control

-Analogue Video/Audio input

-2xUSB (Type-A) for data transfering

-

-

-

... Also includes:



... Also includes:

ASI-TS input and output

(BNC Female, 75 Ω)

IPTV multicast input

(UDP / RTP, RJ45)

Common Interface slot

-1 pps input

FUNCTIONS

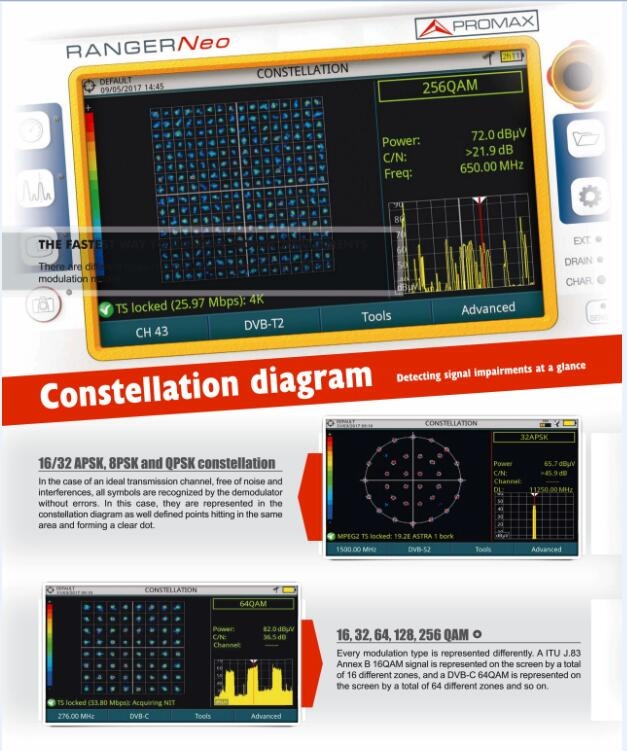

Constellation diagram

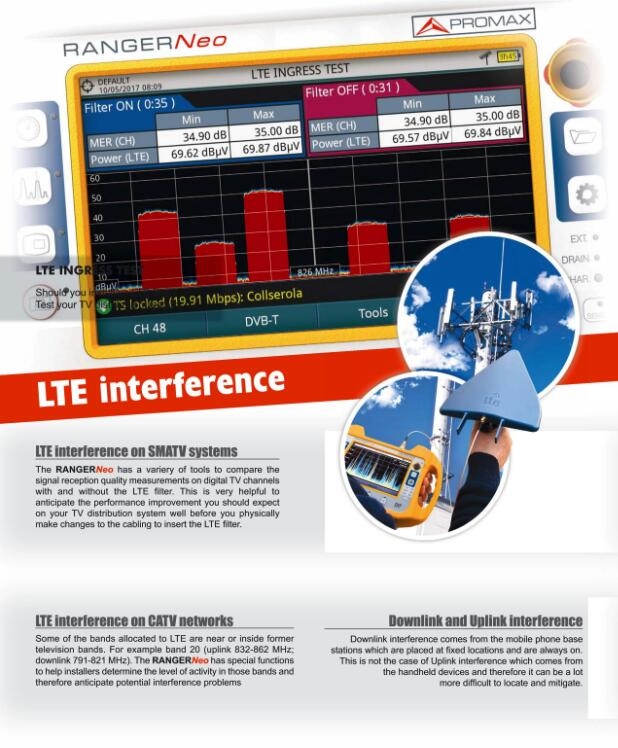

LTE ingress test

Dynamic echoes analysis

StealthID (instant identification of tuning

parameters)

PLS (Physical Layer

Scrambling)

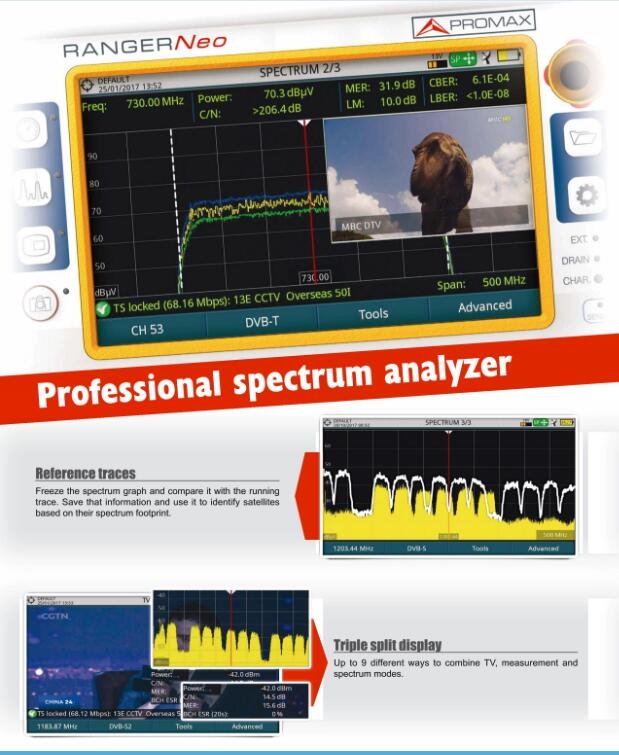

Ultra fast spectrum analyzer

(70 ms sweep time)

4K Frame grabber

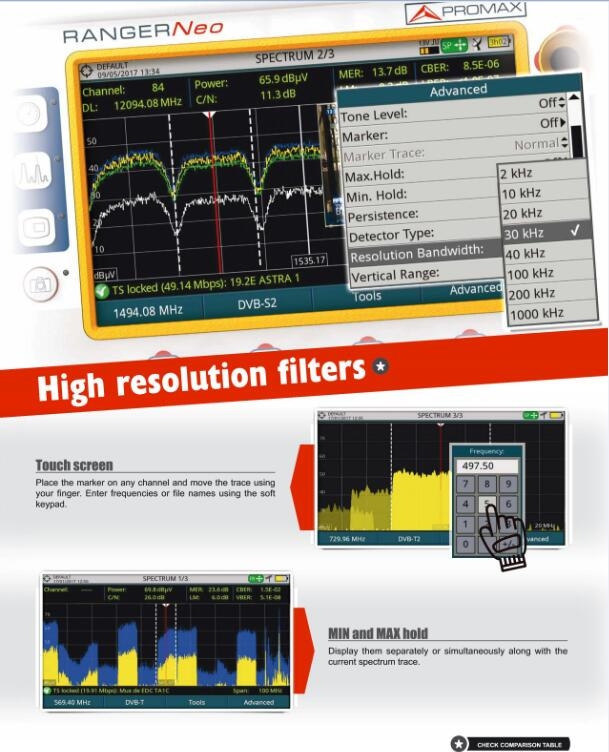

MAX and MIN hold

FM RDS radio measurement and decoding

Screenshots and

Datalogger for meas.reports

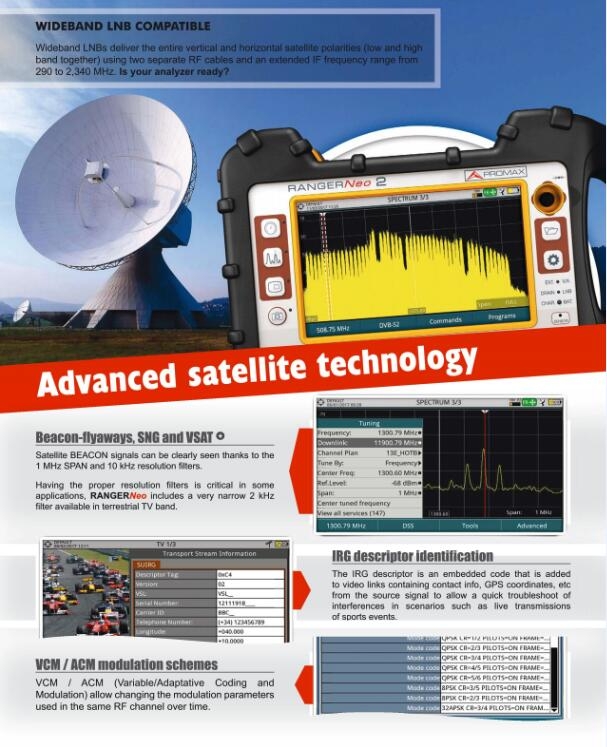

Beacon-Flyaways SND and VSAT

Wideband LNB

WiFi 2.4 GHz

LTE 1.8 GHz

OTT

Service Recording

Field strength measurement

Task planner

... Also includes:

-

-

-

... Also includes:

-

-

... Also includes:



... Also includes:

Merogram

Spectrogram

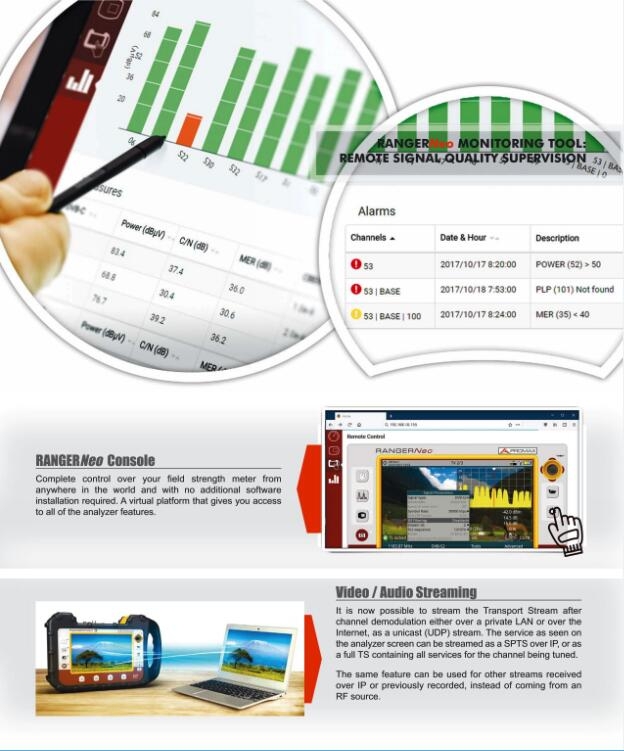

Signal monitoring

Remote control (webserver)

MER by carrier

GPS coverage analysis

(optional)

Video/Audio Streaming - SCAN + TILT

TS recording

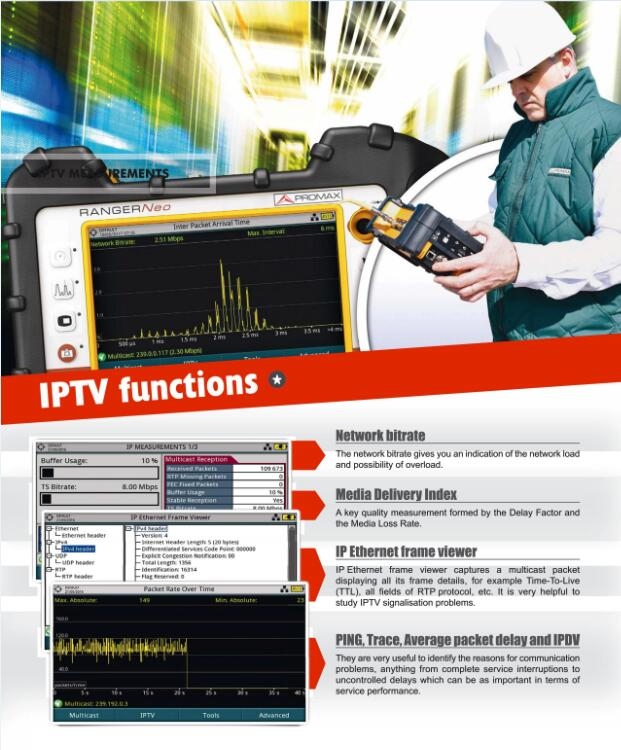

TS analysis IPTV multicast

measurement and decoding

Shoulder attenuation

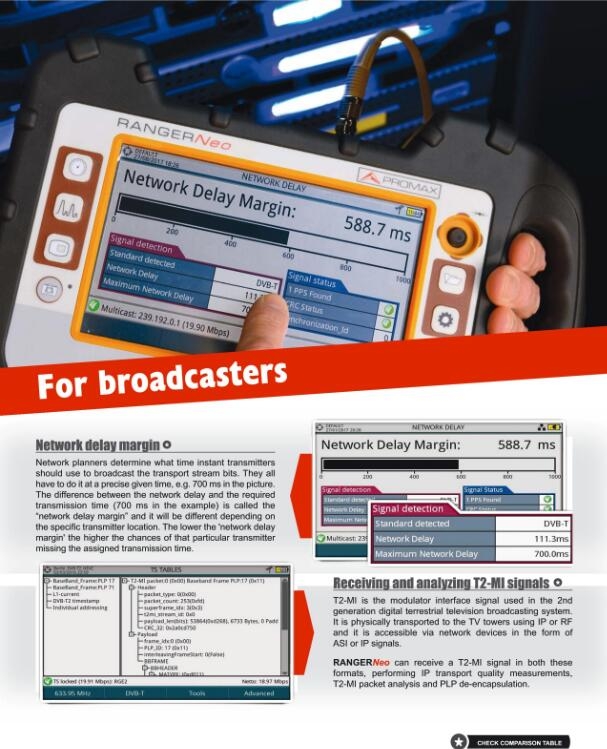

Network delay

DVB-T2-MI analysis

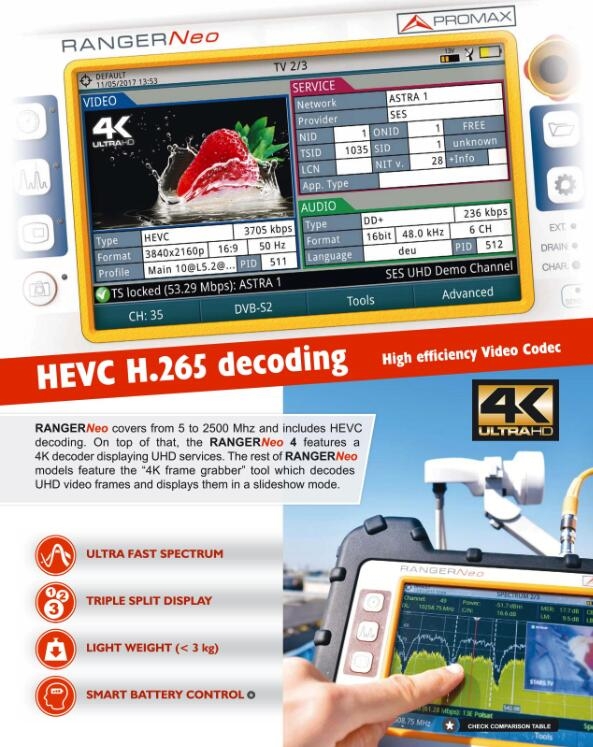

- 4K decoder

SPECTRUM ANALYZER

Frequency Margin

Measurement range

Span

Resolution bandwidths

From 5 - 1000 MHz (Terrestrial)

From 250 - 2500 MHz (Satellite)

From 10 - 130 dBµV

Full / 500 / 200 / 100 / 50 / 20 / 10 MHz

100 kHz

100, 200 kHz 1 MHz

2 kHz (terrestrial)

10, 20, 30, 40, 100, 200 kHz 1 MHz

MEASUREMENT MODE (please refer to STANDARDS section) Frequency Margin

DVB-T COFDM

DVB-T2 Base and Lite COFDM

DVB-C QAM

DVB-C2 COFDM

PAL, SECAM and NTSC

FM radio

DVB-S QPSK

DVB-S2 QPSK, 8PSK, 16/32APSK

DSS QPSK

From 5 - 1000 MHz (Terrestrial)

From 250 - 2350 MHz (Satellite)

Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin

Power (35 to 115 dBμV), CBER, C/N, LBER, MER, Link Margin, BCH ESR, LDP iterations, Wrong packets Power (45 to 115 dBμV), BER, MER, C/N, Link margin

Power (45 to 115 dBμV), CBER, MER, C/N, LBER, BCH ESR, LDP iterations, wrong packets M, N, B, G, I, D, K and L

Level measurement

Power (35 to 115 dBμV), CBER, MER, C/N, Link Margin

Power (35 to 115 dBμV), CBER, LBER, MER, C/N, BCH ESR, Wrong packets, Link Margin Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin

INTERNAL STORAGE

7 GB for measurement protocols, screenshots and transport stream recordings

PC CONNECTION

(via ethernet interface)

NetUpdate 4 (free software) + Free and automatic firmware updates + User customised channel plans + Measurement reports and screenshots

GENERAL

Hybrid operation: Touch screen (7”) or conventional keyboard DiSEqC 2.x generator (DiSEqC 1.2 commands implemented) dCSS / SCD 2 (EN50607) and SATCR/SCD (EN50494)

BATTERY

> 2h

> 4 h (smart battery)

HARD CASE

Optional

Included

OPTIONS

RANGERNeo +

RANGERNeo 2

RANGERNeo 3

RANGERNeo 4

DAB, DAB+

Available

Available

Included

Included

GPS Coverage Analysis

Available

Available

Included

Included

Rack assembly

Available

Available

Available

Available

OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input

Available

Available

Available

Available

WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input

Available

Available

Available

Available
