EMC Components testing antenna System EMC600P1

产品分类：3244 Sort：EMI/EMC电磁兼容

全国咨询服务热线+86 755 86091080

立即采购

产品介绍
产品参数

<Feature>

l 600V/m test can be done at Less than 300W

l Applicable to both Ford’s ES-XW7T-1A278-AC & GM’s GMW3097

l Frequency Range: 1.2GHｚ～1.4GHz

Protection of electronics & electric devices or systems in automobiles from malfunction, failure or permanent degradation is critical for automobile safety. Radar Signals used in the airports become unnecessary strong radiation signals for automobiles. Therefore Ford & GM added the test/evaluation of radar pulse immunity.

Maspro’s Model EMC600P1 is very effective antenna and applicable to ES-XW7T-1A278-AC and GMW3097. It is possible to use the current test site because this antenna system can conduct tests/evaluation of 600V/m at less than 300W.

Maspro is confident to create a stable electrical field with little level deviation by controlling electrical field by Maspro’s own antenna design.

<Specifications>

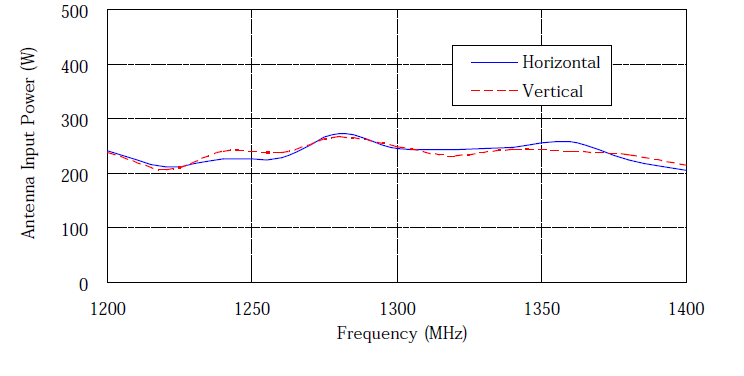

Antenna Input Power for 600V/m

(ES-XW7T-1A278-AC)

This data presents what can be reasonably expected, and we can not guarantee its accuracy.
The input power necessary to acquire 600V/m fluctuates according to the condition of your test laboratory.
